Industrial Two Stage Oil free Turbine Air Compressor Capacity 78-140 m³/min GDC-90

Product Description

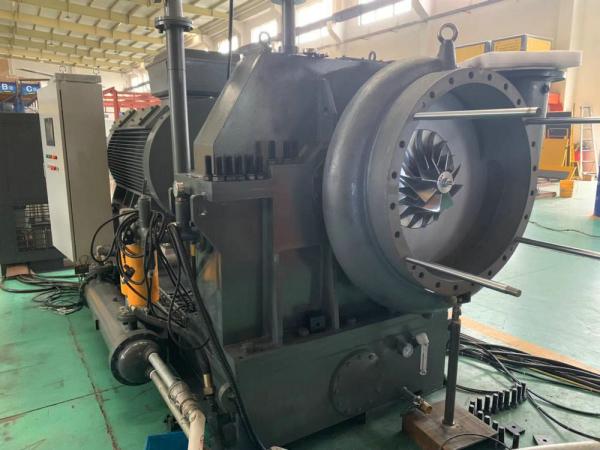

The centrifugal compressor unit consists of horizontally split gearbox, high strength compressor casing, high performance titanium alloy or 17-4PH hardened martensitic stainless steel impellers with 3-D flow backward leaning vanes, labyrinth gas and oil seal, unitized, copper alloy cooler, inlet guide vanes with actuator and fabricated baseframe supporting compressor, motor, cooler, control cabinet etc and and lubrication oil tank.

Parameters

Model No.

GDC-90

Compressor Type

Centrifugal Type

Stage No.

1/2/3

Oil Free

Yes

Service Life

≥35years

Anti-surge Function

Yes

Power
(KW)

430-800

Pressure
(bar)

2.0-12

Air Flow
(m3/min)

78-140

Dimension
(L*W*H )mm

2950x1660x2100

Weight
(KG)

4900

Impeller Material

Titanium Alloy/Stainless Steel

Pinion Shaft Material

17CrNiMo6

Bull Gear Shaft Material

42CrMoA

Motor

WEG/Marathon

PLC Control System

Siemens

Circuit Breaker

ABB

Pressure Transducers

MEAS

Temperature Control Valves

AMOT

Vibration Sensors

Bently

Temperature Sensor

SEC

Motor Protection Grade

IP54 or customized

Motor Insulation grade

F Class or customized

Temperature Rise Leve

B Class or customized

Lubrication Method

Grease Lubrication

Features of Centrifugal Compressors

  • Integrated unit design

Integrated overall layout, compact structure, reasonable and simple installation, only the air pipe, water pipe and electrical system need to be connected.

  • Horizontal split type structure

The gearbox, bearing and sealing system are all of horizontal split structure, which is convenient for maintenance. During maintenance, it is not necessary to dismantle all the air inlet and exhaust pipes, volute, etc. Compared with vertical sectioning, it can save more than 6 times of maintenance time.

  • Inlet regulating guide vane

Equipped with imported regulating guide vane, it can save 9% energy upon the maximum inlet flow than butterfly valve. Wide adjustment range.

  • Efficient backward curved impeller and integral milling diffuser

Efficient three-way flow backward curved impeller is adopted to make the compressor reach 60-105% of flow regulation range. The diffuser made of aviation aluminum material ensures no leakage and minimal internal friction. Compared with cast iron, it has corrosion resistance, high strength and small air resistance. The efficiency of the compressor is further improved.

  • Tilting bearing

The advanced five piece tilting pad bearing, which has the auto-center function ensures the best stable operation state, excellent buffer performance, good anti oil film oscillation performance, and the service life is more than 100000 hours. And the designed service life of the unit shall not be less than 30 years.

  • Cooling system

GooDSeaA cooler structure adopts water flowing inside the pipe and gas flowing outside the pipe , with guide rail and roller. The drawable straight tube cooler is made of Navy copper, which has excellent corrosion resistance and is not easy to scale.

  • Oil circuit system

Free switching parallel double oil filter effectively avoids the disadvantage that the single oil filter must be shut down to replace the filter element and extends its service life.

  • Carbon ring sealing system without oil

Two relatively independent working systems, air circuit and oil circuit, ensure the air quality of compressor, and overcome the leakage problem of compressor through reliable labyrinth seal or carbon ring seal system.

  • Simple Control System

Standard PLC + color LCD touch screen, with large storage function, multiple monitoring and protection functions, can display multiple information at the same time in the same picture, which is easier to operate and more stable.

  • Anti surge function

Through the advanced method of continuously monitoring the changes of the two parameters of system pressure and current at the same time, it can avoid the misoperation of surge only by single signal judgment, and effectively prevent the occurrence of surge

  • Vibration protection function

Goodsea centrifugal compressor is equipped with vibration measurement system in each stage of compression section, which has protection measures for each stage. And the equipment has the functions of numerical display, alarm, shutdown, etc. Ensure safe and stable operation of the whole set machine.

Impeller

Impeller Type

3-D flow backward leaning vanes

Material

Aircraft-grade titanium alloy or high strength stainless steel

Two Stage Oil Free 140M3/Min 800KW Turbine Air CompressorTwo Stage Oil Free 140M3/Min 800KW Turbine Air Compressor

Volute

Split Type

Horizontal

Material

Ductile Cast Iron

Pinion

Bearing Type

5-petal tilting-pad type bearing

Shaft Type

With thrust ring

Shaft Material

17CrNiMo6

Grade

AGMA 13

Big gear wheel

Bearing Type

Radial direction thrust bearing

Shaft Material

42CrMoA

Big gear wheel

17CrNiMo6

Grade

AGMA 13

Two Stage Oil Free 140M3/Min 800KW Turbine Air Compressor
